Rod Seal 90x105x22.5 PSE
Product Code:: PSE-745/1

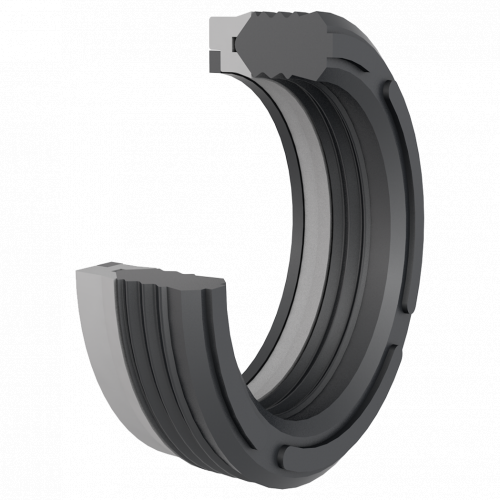

PSE/A155/MGM - composed of three parts: the main sealing element is made of NBR, from the bottom there is a support ring (reinforced by cotton fabric) with a modified profile - to fit an acetalic anti-extrusion ring, which guarantees optimal sealing in earth moving equipment.
The PSE is an effective sealing element for rod application. Designed with a profile suitable in cases were hydraulic equipment is a subject of severe vibration, shock and high pressure.
Material: NBR + Cotton fabric/NBR + POM
Temperature: -30˚C +110˚C
Pressure: 700 bar
Speed: 0,5 m/s
Material
NBR/Fabric/POM
Thickness
22,5
Inner Diameter
90
Outer Diameter
105
Product Code
PSE-745/1
