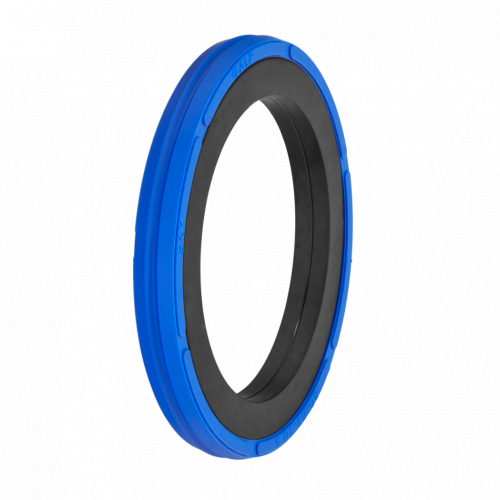

Piston seal 50.80x41.40x7.14 A110
Product Code:: A110 050.8-041.40
In Stock (10 )
PSQ/A110 TYPE PISTON SEAL
This seal has a double point profile in the
in the dynamic part, and two small steps in
the static part where the Q-ring is housed.
The Q-ring energizes the seal and provides a perfect
sealing performance at low and high pressure.
The shape of the central double profile
prevents hydrodynamic pressures on the seal and
the resulting blow-out effect.
Technical data
Pressure: < 250 Bar with a C0-type material at 93
Shore A, at a temperature of 60°C.
< 400 Bar a D0-type material, at 98
Shore A, at a temperature of 60° C.
Speed: < 0.8 m/s
Temperature: from – 35° C to + 100 ° C with peaks
up to 110° C.
Fluids: mineral oils
Material
Material proposed are TPUs with different
hardness according to the working pressure.
Compound reference: CN (93 Shore A with Q-ring )
or, alternatively, DN (98 Shore A with Q-ring)
Material
PU/NBR
Thickness
7,14
Inner Diameter
41,4
Outer Diameter
50,8
