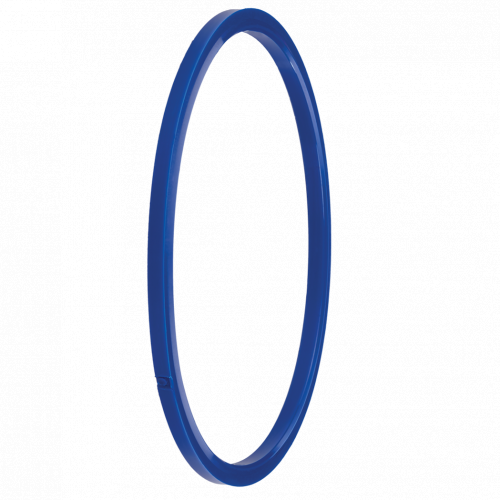

Static seal 25.4x17x2.85 A402
Product Code:: A402-017
FSA TYPE SAE FLANGE SEAL
The FSA seal type (SAE Flange) has recently known
a significant development in all static applications
where a normal NBR O-ring would not resist to
pressure and high coupling clearance.
The specific profile and the high modulus of
elasticity, together with an excellent compressionset, avoid extrusion and leakage problems in the
tubes flanging.
Pressure: < 500 bar
Temperature: from - 35° C to + 100° C with peaks
up to 110° C
Fluids: oil and mineral grease, nonaggressive gases
Material
PU
Thickness
2,85
Inner Diameter
17
Outer Diameter
25,4
Product Code
A402-017
